Understanding Expansion Valves: Key Components of HVAC Systems

Introduction

In the world of heating, ventilation, and air conditioning (HVAC), the expansion valve plays a pivotal role. It is one of the core components that ensure the effective cooling and heating of spaces. But what exactly is an expansion valve, and why is it so important in HVAC systems? This blog will delve into the purpose, types, and functioning of expansion valves, highlighting their significance in maintaining comfort and efficiency in residential, commercial, and industrial environments.

1. What is an Expansion Valve?

An expansion valve is a device found in HVAC systems, primarily in air conditioners and refrigeration units. Its primary function is to regulate the flow of refrigerant into the evaporator, controlling the amount of refrigerant that passes into the evaporator and ensuring the system's efficiency and stability. By controlling the refrigerant flow, the expansion valve ensures that the refrigerant enters the evaporator at the right pressure and temperature, which is essential for effective heat exchange.

2. How Does an Expansion Valve Work?

The expansion valve operates by taking high-pressure liquid refrigerant from the condenser and reducing its pressure before it enters the evaporator. This process allows the refrigerant to expand and cool, thus enabling it to absorb heat effectively from the indoor environment. Here’s a step-by-step breakdown of its working process:

- High-Pressure Liquid Entry: The refrigerant enters the expansion valve as a high-pressure liquid, having just passed through the condenser where it releases heat.

- Pressure Reduction: The valve reduces the refrigerant pressure as it passes through a narrow opening. This pressure reduction is essential for the refrigerant to expand and change state from a liquid to a vapor.

- Temperature Drop: As the pressure drops, the refrigerant’s temperature also decreases, making it cold enough to absorb heat from the surrounding air in the evaporator.

- Controlled Flow: The valve ensures a controlled flow of refrigerant, adjusting to the cooling load demands, which can vary depending on the temperature and humidity levels of the environment.

3. Types of Expansion Valves

There are several types of expansion valves, each designed to meet specific needs and applications in HVAC systems. The most common types include:

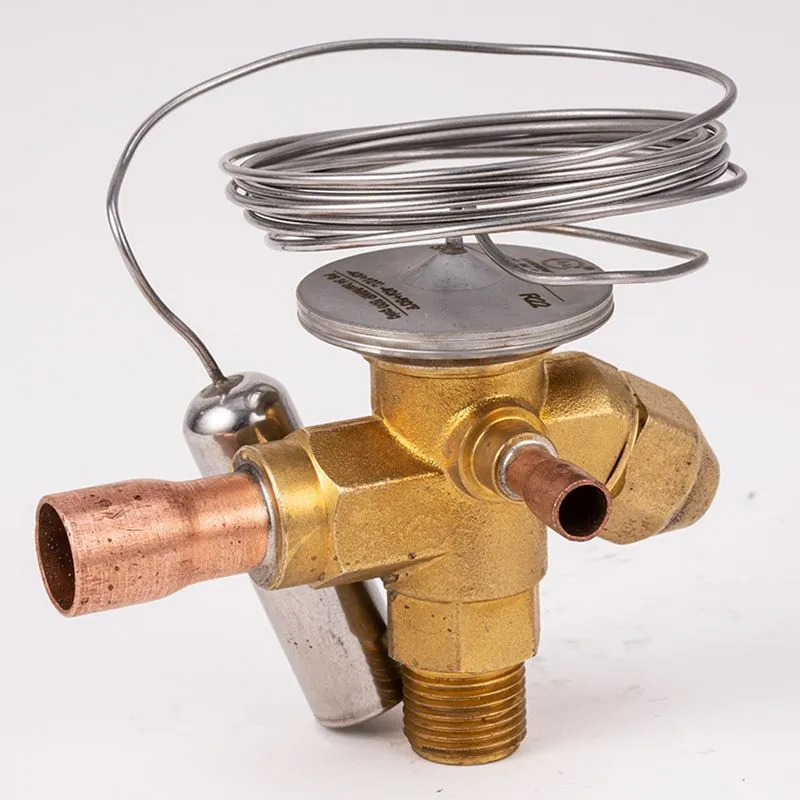

- Thermostatic Expansion Valve (TXV): One of the most commonly used expansion valves, the TXV adjusts the flow of refrigerant based on the temperature of the evaporator. It uses a temperature-sensing bulb filled with refrigerant to monitor the temperature, ensuring that the right amount of refrigerant is metered into the evaporator.

- Electronic Expansion Valve (EEV): An EEV provides precise control over refrigerant flow using electronic sensors and a controller. It adjusts the flow rate based on real-time data, allowing for better efficiency and response to changing conditions.

- Capillary Tube: A simple, cost-effective expansion device, the capillary tube has no moving parts and operates by allowing refrigerant to flow through a small-diameter tube. It is commonly used in small refrigeration units and systems with a constant cooling load.

- Automatic Expansion Valve (AEV): An AEV maintains a constant pressure in the evaporator regardless of the cooling load. It is less commonly used than TXVs or EEVs due to its inability to adjust to varying loads efficiently.

4. Importance of Expansion Valves in HVAC Systems

Expansion valves are crucial for the overall performance and efficiency of HVAC systems. Here’s why they are so important:

- Energy Efficiency: By precisely controlling the flow of refrigerant, expansion valves help maintain optimal system efficiency, reducing energy consumption and operational costs.

- Temperature Control: They ensure the correct temperature and pressure of the refrigerant entering the evaporator, which is essential for maintaining the desired indoor temperature.

- System Protection: Expansion valves prevent the evaporator from getting too much refrigerant, which can cause flooding and potential damage to the compressor.

- Comfort and Consistency: By regulating the refrigerant flow, expansion valves contribute to consistent cooling and heating, ensuring comfort for occupants.

5. Maintenance and Troubleshooting of Expansion Valves

Like any other component in an HVAC system, expansion valves require regular maintenance to function effectively. Common issues that can arise with expansion valves include clogging, malfunctioning sensors, and improper adjustments. Regular inspections and maintenance can help identify and address these issues before they lead to system failures or reduced efficiency.

Conclusion

Expansion valves are vital components in HVAC systems, ensuring that refrigerant flow is carefully regulated to provide optimal cooling and heating. Understanding how these valves work and the different types available can help in selecting the right valve for specific applications and maintaining the efficiency and longevity of HVAC systems. As technology advances, expansion valves continue to evolve, offering even greater precision and control for the ever-growing demands of modern HVAC systems.
