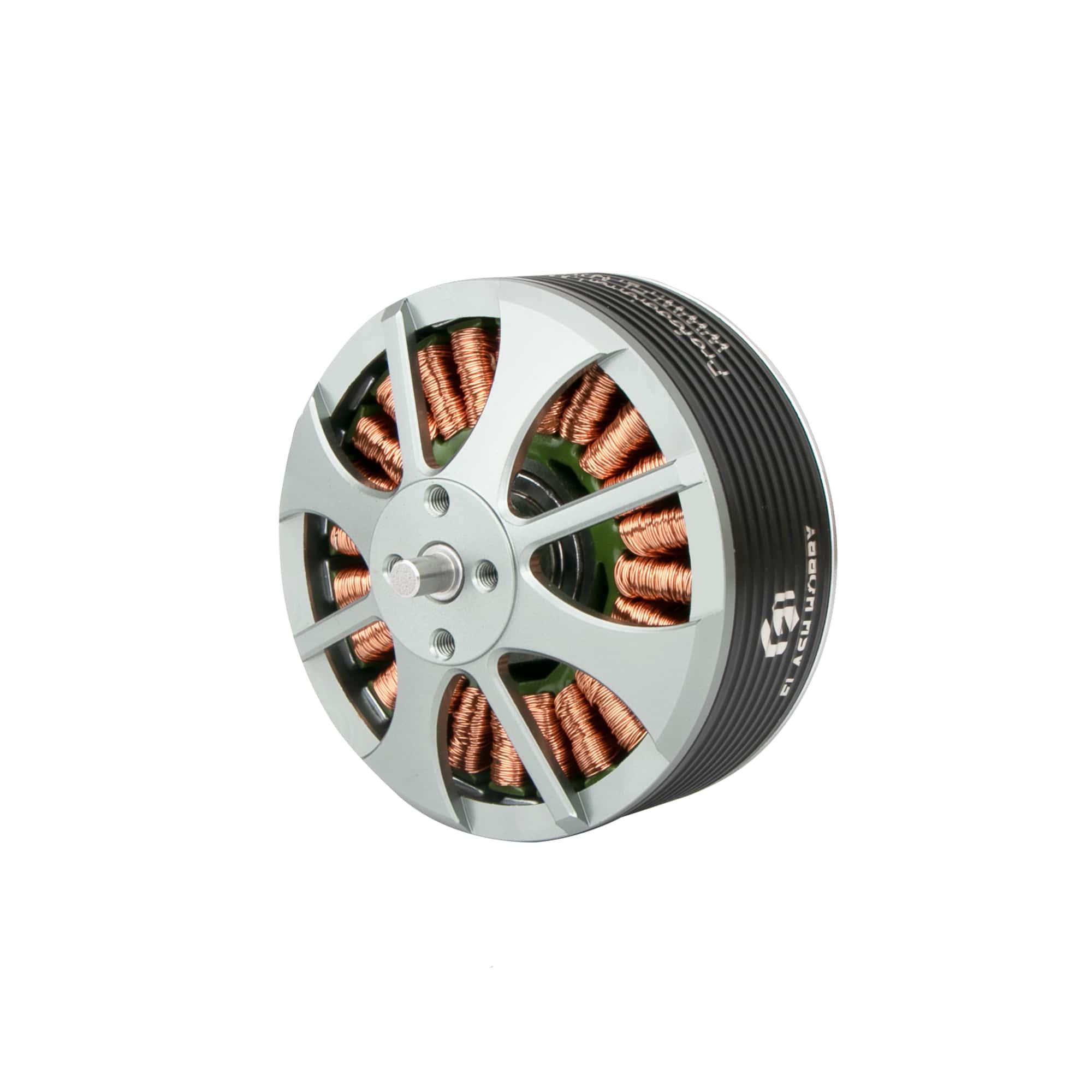

Multirotor motors are electric motors specially designed for use in multirotor drones, commonly known as quadcopters, hexacopters, or octocopters. These motors are essential components of the propulsion system, providing the thrust required to lift and maneuver the drone. Multirotor motors come in various sizes, types, and specifications to meet the specific needs of different drone configurations. Here are the key features and characteristics of multirotor motors:
Key Features:
1. Brushless Design: Multirotor motors are typically brushless, which means they do not have physical brushes or commutators. This design reduces friction, increases efficiency, and extends the motor's lifespan compared to brushed motors.
2. High Power-to-Weight Ratio: These motors are designed to provide a high power-to-weight ratio, allowing drones to achieve the necessary thrust for takeoff and maneuvering while keeping the overall weight of the system as low as possible.
3. Efficiency: Multirotor motors are engineered for efficiency to maximize flight time and optimize power consumption, crucial for drone operation.
4. Compact and Lightweight: They are designed to be compact and lightweight, making them suitable for aerial applications where weight is a critical factor.
5. High RPM: Multirotor motors can spin at high revolutions per minute (RPM), generating the fast rotation required to create thrust and lift the drone off the ground.
6. Low Heat Generation: These motors are designed to minimize heat generation, ensuring that they operate within safe temperature ranges during flight.
7. Mounting Compatibility: Multirotor motors are designed to be compatible with various drone frames and mounting configurations, making it easier for users to integrate them into their drone builds.
Types of Multirotor Motors:
1. Outrunner Motors: Outrunner motors have the motor's rotating part (the rotor) on the outside of the motor housing. They are known for their high torque and are commonly used in larger drones and heavy-lift applications.
2. Inrunner Motors: Inrunner motors have the rotor inside the motor housing. They are typically more compact and are often used in smaller, lightweight drones where space is limited.
Specifications and Selection Criteria:
When selecting multirotor motors for a drone build, users consider several key specifications, including:
- Kv Rating: Kv (pronounced "kay-vee") is the motor's velocity constant and indicates how many RPM the motor will turn per volt. Lower Kv motors produce more torque and are suitable for larger propellers and heavier drones, while higher Kv motors are better suited for smaller, lighter drones.
- Stator Size: The stator size refers to the diameter and length of the copper wire windings within the motor. Larger stator sizes generally provide more power and efficiency.
- Voltage Range: Multirotor motors are designed to operate within a specific voltage range, typically specified in terms of cell count (e.g., 3S, 4S, 6S for lithium-polymer batteries). Users must match the motor's voltage range with the drone's power supply.
- Thrust-to-Weight Ratio: Users calculate the thrust-to-weight ratio to ensure the motor can generate enough thrust to lift the drone's weight, including the payload.
- Propeller Compatibility: The motor's specifications must match the type and size of propellers that will be used on the drone.
- ESC (Electronic Speed Controller) Compatibility: Users must ensure that the motor's electrical characteristics (e.g., current rating) are compatible with the ESCs used in the drone.
Multirotor motors are integral components in drone technology, and their selection plays a crucial role in determining the performance, stability, and capabilities of the drone. Properly matched motors contribute to efficient and controlled flight, making them a vital consideration for drone enthusiasts and professionals alike.
