What is patch panel and how it works?

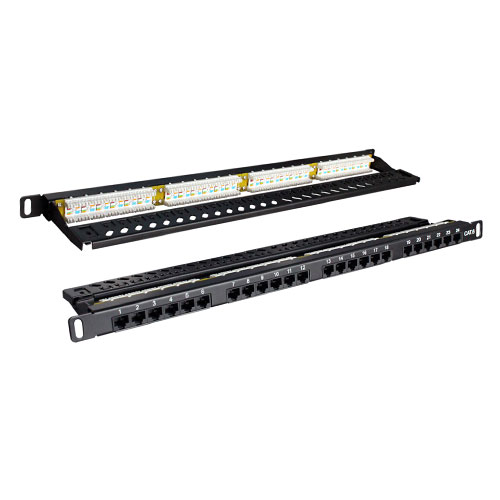

A patch panel is a device used in networking to organize and manage network connections. It serves as a central point for terminating and interconnecting network cables. Patch panels are commonly used in data centers, server rooms, and network distribution areas.

The main purpose of a patch panel is to facilitate easy management, organization, and maintenance of network connections. It typically consists of multiple ports, each of which corresponds to a network cable. These ports are usually arranged in rows or columns and labeled for identification.

Here's how a patch panel works:

1. Cable Termination: Network cables, such as Ethernet cables, are terminated onto the back of the patch panel. The cables are usually stripped, and their individual wires are attached to the corresponding ports on the patch panel. This process is often done using punch-down or keystone jacks.

2. Cable Organization: Once the cables are terminated, the patch panel helps to organize and manage them systematically. The cables are typically neatly arranged and secured within the patch panel, reducing cable clutter and making it easier to identify and trace specific connections.

3. Interconnection: The front side of the patch panel features ports that are used for interconnecting with other network devices. These ports may be labeled with numbers, labels, or color codes for identification. Network cables from devices such as computers, switches, routers, or other networking equipment are connected to the appropriate ports on the patch panel.

4. Patching: The connections between devices are established by using patch cables. These shorter cables with connectors on both ends are used to connect the ports on the patch panel to the corresponding ports on networking devices. Patching allows for flexibility in establishing or modifying connections without having to rewire the entire network infrastructure.

By using a patch panel, network administrators can easily manage, troubleshoot, and reconfigure network connections. It simplifies the process of adding or changing network devices and helps maintain a neat and organized network infrastructure. Additionally, patch panels provide a central location for monitoring and testing network connections, making it easier to identify and resolve any issues that may arise.

Overall, patch panels streamline network connectivity and improve the efficiency of network management in professional networking environments.
