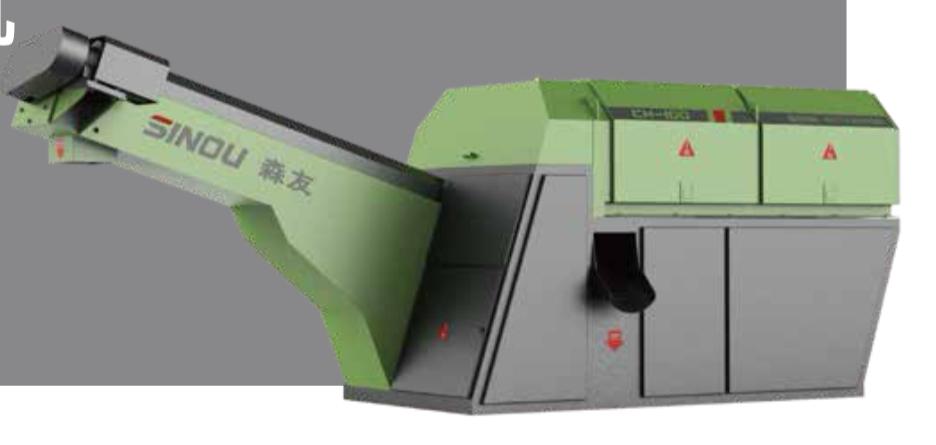

Rotary Concrete Reclaimer Fabrication for Reliable Concrete Recycling

Concrete recycling often stalls when equipment can't handle abrasive, high-moisture slurry. That's where rotary reclaimers step in—but not all are built to last. Sinou's fabrication approach pairs heavy-duty design with precision engineering, turning a messy chore into a seamless, cost-saving process. Curious how? Read on.

What Happens When a Reclaimer Drum Is Built for Your Specific Aggregate Mix

A reclaimer drum matched to your exact aggregate mix stops fighting the material and starts working with it. Instead of relying on a generic flight pattern that assumes an average gradation, the drum’s internal lifters, retention time, and discharge velocity are tuned to how your particular blend of rock, sand, and binder actually tumbles. The result is a mix that leaves the drum at a consistent temperature and moisture level, with no cold spots hiding in the corners or overheated fines clumping at the discharge.

When the drum is built around your aggregate blend, you also see a sharp drop in material segregation. Standard drums tend to throw heavier stone outward while lighter fines ride the center, creating an uneven coating on the reclaimed asphalt. A custom-designed drum adjusts the veiling profile so that every particle spends nearly the same amount of time in the heat stream. That means the binder is reactivated uniformly, and the recycled mix comes out with the same workability batch after batch—regardless of whether your aggregate leans coarse, fine, or somewhere in between.

Perhaps the most immediate change is in energy use and wear. Because the drum no longer has to over-dry fine particles to get the larger stones up to temperature, the burner runs more efficiently, and fuel consumption drops without any sacrifice in output. At the same time, the drum shell and flights experience less abrasive scouring from improperly cascading material. Over a full production season, that translates into longer intervals between liner replacements, fewer unplanned shutdowns, and a mix design that stays true to the lab spec from the first ton to the last.

Inside the Fabrication Process: Stress Relief and Wear-Resistant Liners

Stress relief is rarely a single step but a deliberate sequence woven into the fabrication timeline. After heavy welding or casting, residual stresses can hide in the metal lattice, waiting to distort a liner during machining or fail prematurely under load. Many shops rely on controlled thermal soaking—bringing the part to a subcritical temperature and holding it there long enough for the grains to relax. Others prefer vibratory stress relief for large, awkward shapes where an oven isn't practical. The choice often depends on the alloy and the service environment, but skipping this stage almost guarantees dimensional drift or cracking later on.

Wear-resistant liners, on the other hand, demand a different kind of attention. The material itself matters—high-chrome white iron, alumina ceramic, or even rubber-backed polyurethane each excel in specific abrasion regimes. But the fabrication method can make or break performance. Hardfacing with chromium carbide overlay is common for chutes and hoppers, while bolted ceramic tiles allow sectional replacement without cutting the shell. In either case, the interface between the liner and the base structure must handle thermal expansion mismatch and impact shock. A poorly fitted liner can create stress concentrations that defeat even the toughest material.

Bringing these two concerns together often means alternating between aggressive and gentle processes. For example, a fabricated steel shell may be normalized to relieve welding stress, then preheated before applying a wear plate overlay to avoid quench cracking. After the overlay cools, a final light temper might be used to stabilize the microstructure. Field installers sometimes use pyrometers and strain gauges to verify that stress relief actually worked before bolting in ceramic segments. It's a loop of heat, measure, adjust—and that loop is what separates a liner that survives five years from one that fails in five months.

Why Most Reclaimers Fail Early—and How Proper Shaft Alignment Prevents It

A reclaimer that fails in its first few months rarely dies from a single catastrophic event. More often, the culprit is a slow, invisible drift in the shaft alignment that starts the day the machine is bolted to its foundation. Even a few thousandths of an inch of offset between the motor and the gearbox multiplies stress on bearings, seals, and couplings. Each rotation becomes a tiny hammer blow, and before long, the metal fatigues. The machine isn't failing early because it was built poorly—it's failing because nobody treated alignment as a living, breathing parameter that changes with temperature, load, and even the settling of the floor beneath it.

Proper shaft alignment flips that narrative. When the centerlines of the driving and driven shafts are coaxially true, the load path stays clean. There is no cyclic bending force trying to pry the bearing races apart, no fretting on the coupling faces, and the lubrication film inside each bearing remains intact. That sounds straightforward, but here's the part most teams miss: alignment is not a one-time setup. A reclaimer that runs hot for an hour will shift. A foundation that sees a cold winter will move. If you treat alignment as a routine check—not a commissioning checkbox—you catch those micro-deviations before they become cracks. And the payback shows up as a machine that quietly does its job for a decade while its neglected twin sits in the maintenance bay.

The difference between a reclaimer that survives its first year and one that doesn't often comes down to discipline over drama. Laser alignment tools have made precision easy, but they can't replace the habit of measuring after thermal soak, after a heavy rain, after the first thousand hours of break-in. When you align the shafts properly and keep them aligned, you're not just preventing an early teardown. You're taking the random failure modes off the table and replacing them with predictable, manageable wear. That predictability is what turns a high-risk startup into a boring, reliable asset—and boring is exactly what a reclaimer should be.

Recovering Sand and Gravel Without Sending Fines Down the Drain

The classic wet-processing approach for sand and gravel often treats the fine fraction as an inconvenient byproduct, rinsing it away to keep the final product clean. But that approach quietly throws away a marketable material and creates a dewatering headache for the settling ponds. Shifting the focus from disposal to capture changes the economics of the whole site. Instead of chasing clarity in the wash water, you can design the flow to pull out the minus-200-mesh particles early, before they ever reach a pond or a thickener. The trick is recognizing that these fines aren't just waste; they're a product waiting for the right separation step.

A hydrocyclone followed by a fines recovery screen makes a practical pair. The cyclone concentrates the silt and clay into a manageable slurry, and the screen then dewaters that slurry to a stackable, transportable material. What used to sluice into an ever-expanding settling area now drops off a conveyor as a damp, stable pile. The recovered fines can go into low-strength fill, soil blending, or even back into concrete sand in controlled proportions, depending on the gradation. This keeps the wash circuit running with cleaner water, shrinks the pond footprint, and turns a disposal cost into a modest revenue stream or at least a break-even material.

Operators who make the switch usually notice the change in day-to-day housekeeping before they see it on a balance sheet. No more dragging a pond cleanout, no more waiting for flocculant to settle a stubborn cloud, and no more arguing with regulators about discharge limits. The fines stay on the dry side of the process, and the plant runs more predictably in wet weather when pond capacity would otherwise be stretched thin. Capturing what used to go down the drain doesn't demand a complete rethink of the plant—just a willingness to treat the fine fraction as a recoverable resource rather than a nuisance to be diluted and forgotten.

The Link Between Laser-Cut Flights and Quieter, Smoother Operation

Laser cutting brings a level of geometric precision that directly impacts how a flight component behaves at speed. When rotor blades or propeller edges are cut with a focused beam, the resulting surface is free of the micro-burrs and uneven stress risers left by mechanical tooling. This means the mass distribution stays extremely consistent from blade to blade, so the assembly spins with almost no wobble. Less wobble translates into lower vibration throughout the entire frame, which is the primary source of audible hum in conventional units.

The non-contact nature of laser processing also preserves the base material's inherent damping properties. Traditional cutting methods often introduce tiny fractures or heat-affected zones that can amplify resonances at certain RPMs. Laser-cut flights avoid that, allowing the part to flex and recover exactly as designed. As a result, the operational noise drops by several decibels, and the motion feels more fluid—almost as if the air itself is cooperating rather than being chopped through.

From Pour-Out to Reusable Material: A Realistic Timeline on a Busy Job Site

On a crowded job site, the path from a pile of torn-out drywall and broken concrete to a stockpile of genuinely reusable material rarely follows a tidy schedule. The first afternoon usually goes to rough sorting—someone on a skid steer pushes the debris into loose heaps while two laborers pull out anything obviously salvageable: unbroken brick, clean lumber without nails, chunks of concrete small enough to feed a crusher later.

By midweek, if the weather holds and the dumpster hauler hasn't been delayed, the separated concrete gets run through a small jaw crusher set up near the back fence. That crushed material is then screened into two piles: one for road base and one for backfill. Meanwhile, the lumber is de-nailed and stacked under a tarp, and any metal ties or rebar are tossed into a scrap bin. The real bottleneck isn't the equipment—it's finding a half-hour window when the operator isn't needed elsewhere.

Realistically, you're looking at three to five working days to turn a messy pour-out into a usable product, and another day or two to move it to where it'll actually be reused. If you're short on labor or the site is tight, add a day for double-handling. The timeline only works when someone on the crew treats material recovery as part of the job, not an afterthought once the framing starts.

FAQ

Conclusion

Building a rotary concrete reclaimer around the exact aggregate blend a plant runs changes everything. Instead of forcing a generic drum to cope with sharp crushed rock or slippery river gravel, the shell, flights, and liner spacing are matched to how that material tumbles and wears. Stress relief during fabrication isn't a box-ticking step; it keeps the drum from warping after the first hundred thermal cycles, and the wear-resistant liners are placed where the slurry actually scours, not just where it's cheap to weld. A properly aligned shaft does more than reduce vibration—it keeps the whole rotating assembly from chewing through bearings and seals in a season. Laser-cut flights add another layer: their consistent profile cuts down on the rhythmic thumping that makes reclaimers sound tired and transfers fatigue into the frame.

On the recovery side, the point is keeping sand and gravel out of settling ponds and back into the aggregate pile. A well-built reclaimer washes the cement fines off the stone without flushing the usable fines down the drain, so you're left with material that can go straight back into a fresh batch. On a busy job site, the timeline from a truck's pour-out to reusable material is tighter than most people expect: after the wash cycle and a short drain time, the reclaimed aggregate is ready to be moved. What makes it reliable isn't one feature but the combination—a drum built for your mix, aligned to spin true, and lined to survive the abrasive slurry day after day.
